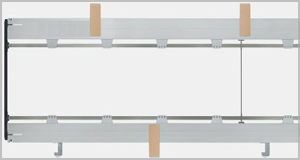

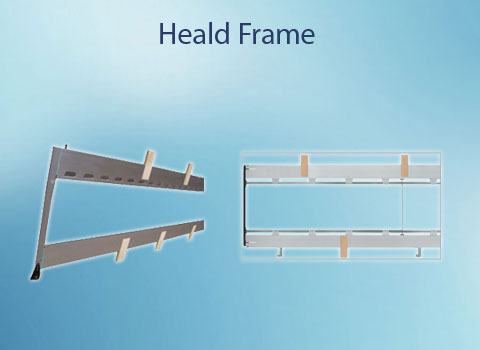

Heald Frame

• Extruded frame staves in a special, high strength anodized aluminum alloy.


• Healds carrying rods in hardened stainless steel with rounded edges for “J” or “C” healds measuring 280 mm ( 11”), 331 mm(13”) or 382mm (15”).These healds carrying rods can be fixed across the full length or are partially movable for manual threading up.


• Lateral supports designed to withstand the highest speeds and to satisfy the requirements of all the major manufacturers of weaving machines.


• The driving elements are available for all kinds of shed forming and weaving machines.


• Frame staves made of 120x9.4 mm extruded aluminum alloy profile.


• One intermediate support for widths over 2,300 mm, adjustable over a stroke from 80 to 150 mm.


• Nickel plated lateral supports available in various sections.
