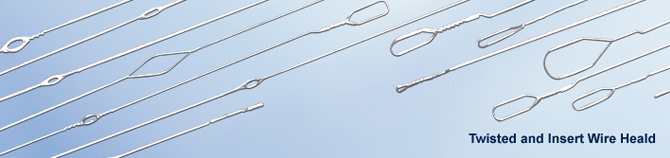

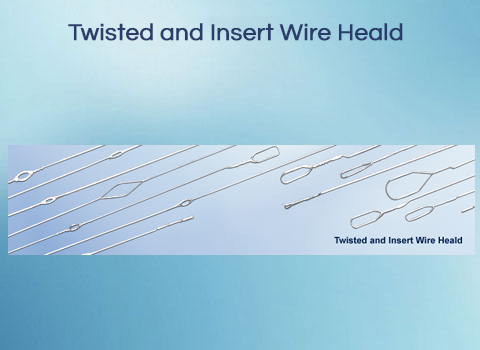

Twisted and Insert Wire Heald

Nickel Plated | Tinned

The center eyes may be of twisted / inserted type with end loops - oblong, round, jacquard or open type. Standard eye shapes of twisted / inserted eyes as shown with standard dimensions in the following page. Eyes are absolutely without sharp edges that keep the running of the yarn and knots without any friction, which minimizes the yarn breakages and serves a smooth and quality weave.

Threaded eye is specially designed at an angle of 45° to ensure long life and reduce the chances of yarn abrasion. Wire healds with twisted / inserted eyes are also available in different sizes, can be designed and manufactured as per specification or sample.

Jacquard wire heald are manufactured with original mail eye from Bracker/Grob, which we import directly from the company

We also provide the product as per your requirements and desired configuration.

OVAL Eye No. Sketch Dimension O-1 3.0 x 1.2 O-2 3.7 x 1.5 O-3 4.0 x 1.5 O-4 4.0 x 1.7 O-5 4.5 x 1.7 O-6 5.0 x 1.7 O-7 7.0 x 2.8 O-8 9.0 x 3.5 O-9 12.0 x 4.0

Hexagonal Eye No. Sketch Dimension h-1 3.0 x 1.2 h-2 5.0 x 1.3 h-3 6.0 x 1.5 h-4 6.5 x 2.0 h-5 7.5 x 3.0 h-6 8.0 x 2.0 h-7 8.0 x 2.8 h-8 11.5 x 3.5 h-9 13.0 x 4.0

Eye No. Sketch Dimension 1010R 2.6 x 0.9 1015R 3.2 x 1.3 1020R 4.0 x 1.5 328R 4.2 x 2.3 355R 5.2 x 2.3 380R 5.6 x 2.7 385R 6.2 x 3.4 1080R 6.6 x 3.9 390R 8.0 x 4.2 420R 9.0 x 4.8 450R 10.0 x 6.3 480R 13.5 x 7.5 360R 5.5 x 1.2 8040R 8.0 x 4.0 50/0 Ø 5.0 65/0 Ø 6.5 80/0 Ø 8.0
