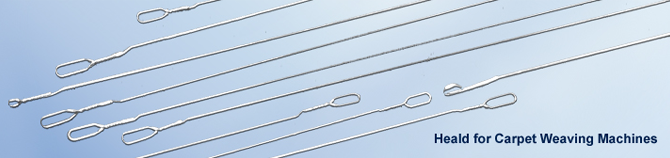

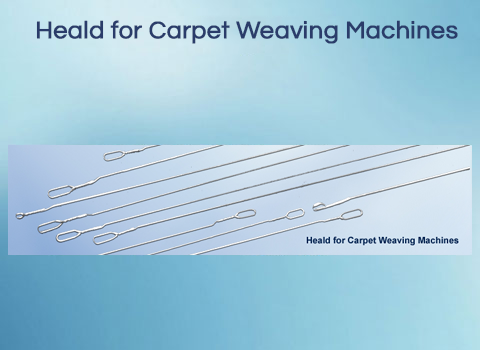

Healds Specification

Wire Size (g/mm)

Length

20

0.92

520, 620, 640, 680, 690, 720, 740, 780, 800, 830 or required

21

0.81

22

0.71

23

0.60

24

0.56

25

0.50

26

0.60

Loop Specification

Eye No.

Sketch

Dimension

355R

4.2 x 2.3

380R

5.6 x 2.7

385R

6.2 x 3.4

1080R

6.6 x 3.9

390R

8.0 x 4.2

420R

9.0 x 4.8

450R

10.3 x 6.3

Eye No.

Sketch

Dimension

1080R

6.6 x 3.9

390R

8.0 x 4.2

420R

9.0 x 4.8

450R

10.0 x 6.3

480R

13.5 x 7.5

8040R

8.0 x 4.0

65/0

Ø 6.5
