Riderless Healds Manufacturers

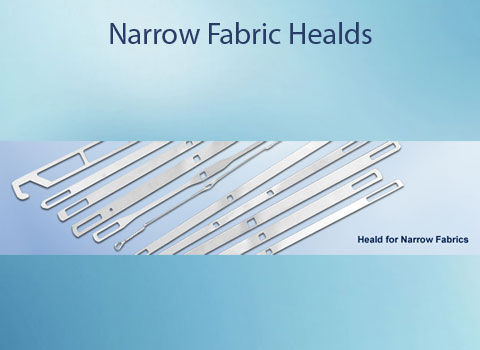

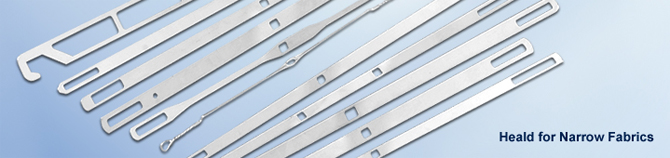

Narrow Fabric Healds

Length Size Eye Location Loop

Top   Bottom
150
 4 x 0.23
4 x 0.23
4 x 0.3
4.5 x 0.3
5.5 x 0.3
5.5 x 0.4		 3.5 x 2.5
3.5 x 2.5
3.5 x 2.5
3.5 x 2.5
3.5 x 2.5
5 x 3.5		 6mm
above
centre
17.5 x 1.8
17.5 x 2
17.5 x 1.8
14 x 2.5
14 x 2.5
17.5 x 1.8		   17.5 x 1.8
17.5 x 2
17.5 x 1.8
14 x 2.5
14 x 2.5
17.5 x 1.8
170
 4 x 0.23
4 x 0.3
4.5 x 0.3
 3.5 x 2.5
3.5 x 2.5
3.5 x 2.5		 centre
14 x 2.5
14 x 2.5
14 x 2.5		   14 x 2.5
14 x 2.5
14 x 2.5
180
 4 x 0.23
4 x 0.3
4 x 0.3
4.5 x 0.3
5.5 x 0.4		 3.5 x 2.5
3.5 x 2.5
3.5 x 2.5
3.5 x 2.5
5 x 3.5		  centre
12 x 1.8
12 x 1.8
15 x 2
12 x 1.8
12 x 1.8		   23 x 1.8
23 x 1.8
23 x 2
23 x 1.8
23 x 1.8
125
 0.41
0.31		 1020R  centre
Jacquard Type   Jacquard Type
All dimensions are in mm

Narrow fabric healds also available from SS and CS material which is the best quality hardened & tempered strips with round edges. Entire Narrow fabric healds are ensure burrs free for smoothness to avoid breakage of yarn while passing from eyelet which also made polish by entra care with the help SPM machine. Finally nickel & Zinc plating is done for intact effective manner.

We do make this healds as per customer specific requirement on drawing and sample.
